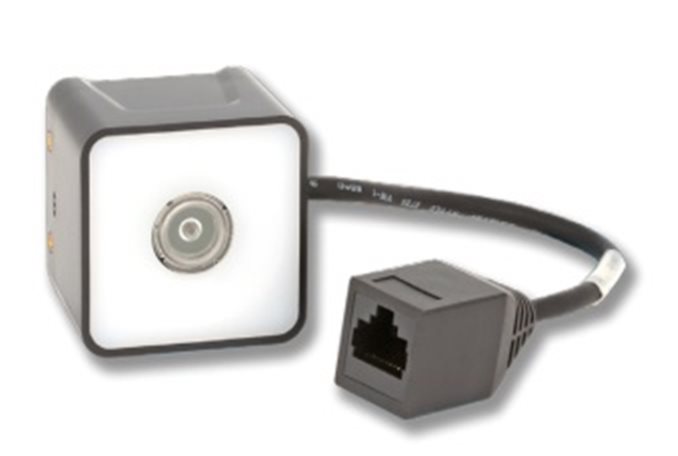

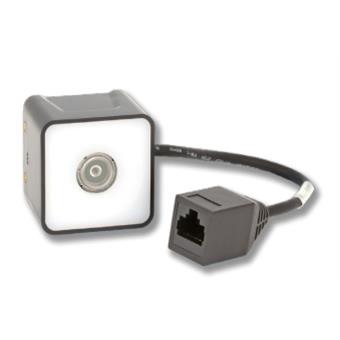

Honeywell HF520, 2D, Scanner Only, black

The Honeywell HF520 new generation, compact module for fixed-mount applications with the; latest Gen7 decoding core, provides a powerful scanning performance for all 1D, PDF, and 2D barcodes on mobile phone screens or on paper. Resolution: 640 x 480 pixels Illumination: ... více
Objednací kód: EPP32009995
Kód výrobce: HF520-1-1USB
Výrobce: HONEYWELL
Záruční lhůta: 24 měs.
Dostupnost: na objednávku
Cena bez DPH: 4 146 Kč
Cena s DPH: 5 017 Kč
Porovnání Oblíbené

The Honeywell HF520 new generation, compact
module for fixed-mount applications with the
latest Gen7 decoding core, provides a powerful
scanning performance for all 1D, PDF, and 2D
barcodes on mobile phone screens or on paper.

Resolution: 640 x 480 pixels
Illumination: white LED
Motion tolerance: up to 3,9 m [12.8 ft]
Field of view: 83° x 66.2°
Scan angles pitch: ±55°, skew: ±65°
Minimum contrast: 25%
Indicator: buzzer
Minimum resolution precision:

  • ID - 3mil (Code 39, P#100001555)
  • 2D - 6.7 mil (QR, P#100001485)

Warranty: 15-month limited warranty; the warranty period starts at date of shipment from Honeywell to customer

Input voltage: 4.5 Vdc to 5.5 Vdc
Power:

  • working - 2.1 W (420 mA at 5 Vdc)
  • standby - 0.7 W (140 mA at 5 Vdc)

Scanner head dimensions (L x W x H): 41,7 mm x 41,7 mm x 32,5 mm [1.64 in x 1.64 in x 1.28 in]
Weight: 58 g [2.05 oz]
Host interface: USB, TTL-RS232

Operating temperature: 1 -10°C to 50°C [14°F to 122°F]
Storage temperature: -40°C to 70°C [-40°F to 158°F]
Humidity: 0 %RH to 95 %RH, no condensation
Drop: withstands two falls onto cement floor from height of 1,5m [4.52 ft]
Ambient light: 0 lux to 100,000 lux
Sealing: IP40
